Image Quality Indicators

We use of the very best materials, manufacturing techniques and rigorous quality control throughout the Image Quality Indicators production process. As a result RADAC Wire Type IQI’s are guaranteed free from defects and conformity can be assured.

IMAGE QUALITY INDICATORS (IQI’S)

Our range of wire type IQI’s are available in both American ASTM E747 and European EN462-1 Standards.

Manufactured in the United Kingdom in our own factory to exacting standards. Therefor by controlling the production process end to end we can ensure that high quality is consistently guaranteed. Subsequently, this attention to detail has meant over time that RADAC IQIs have become the industry benchmark standard.

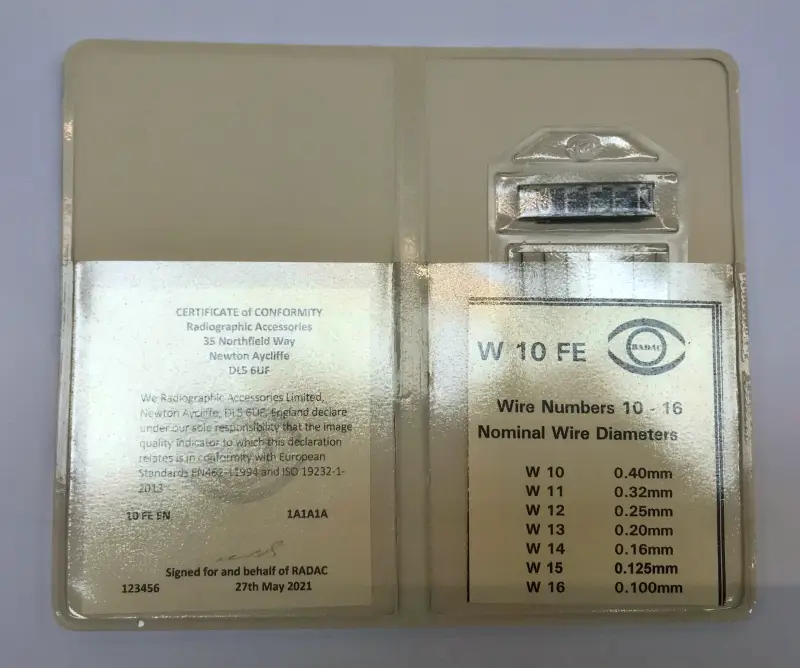

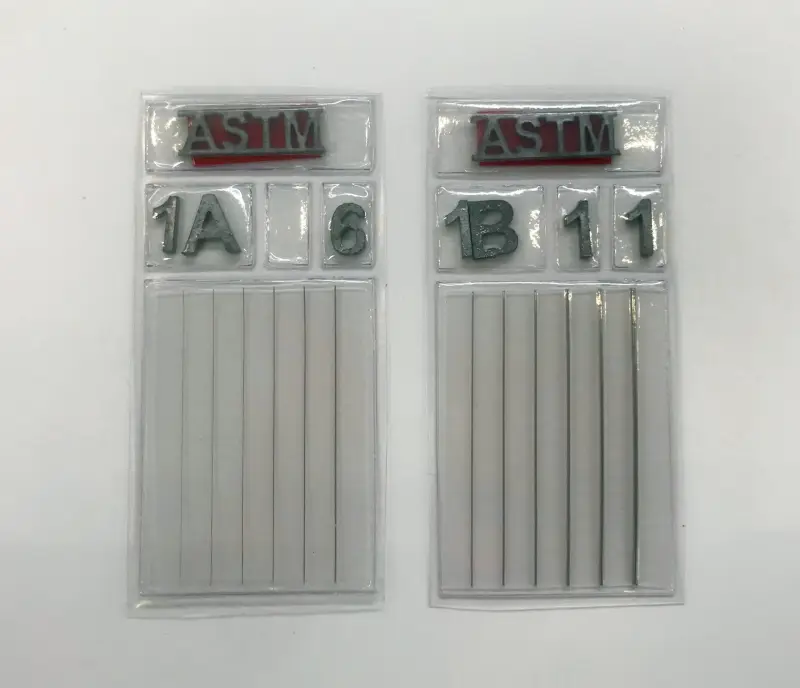

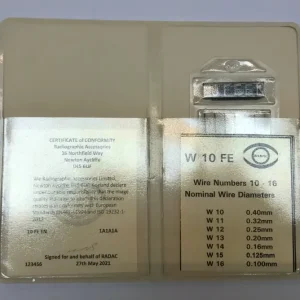

Both EN462-1 and ASTM E747  type indicators are available in the following materials:  Steel (FE), Stainless Steel (SS), Aluminium (AL), Copper (CU), Inconel 600 (IN) and Titanium (TI).ASTM E747 are available in wire lengths of 50mm or 100mm and EN462-1 in wire lengths of 10mm, 25mm, 50mm and 100mm

All RADAC wire type IQIs have a unique serial number for Quality Assurance purposes and audit traceability. For each unique serial number we maintain records of the wire material type, actual measured wire diameters and the date of manufacture.

RADAC manufactures Image Quality Indicators to the following Standards:

 European Standard EN 464-1:1994 (Wire type).

 DIN 54 109 (Wire type).

 ASTM E77-84a/ASME SE747-94 (Wire type).

 EN 462-5 Duplex Wire IQI.


If you are interested in this product, please contact us!
